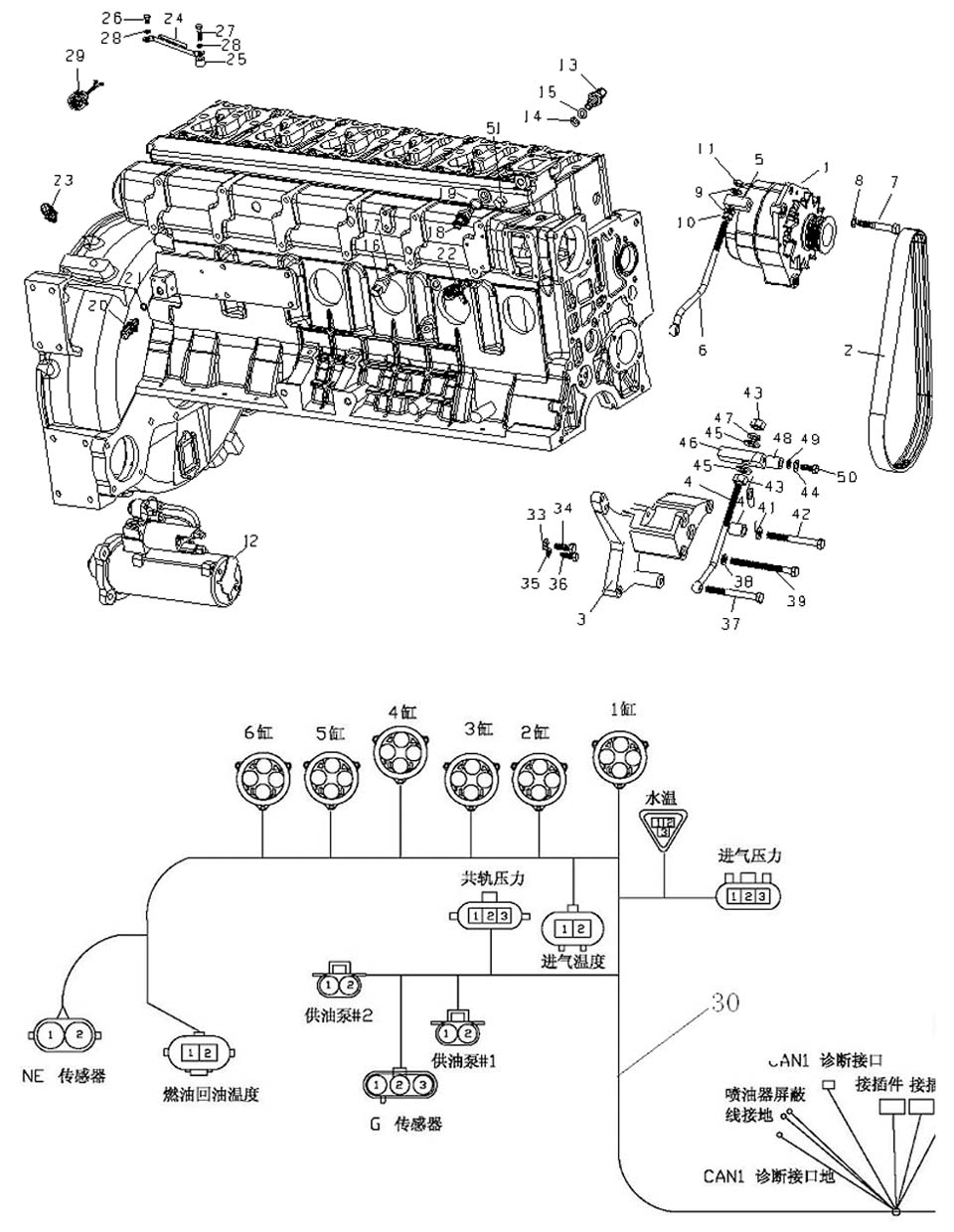

| NO. | Part no | Part Name | Chinese name |
| 1 | VG1560090011 | Alternator | 1.5kW交流发电机 |
| 2 | VG1500090066 | Ribbed belt | 发电机多楔带 |
| 3 | VG1500130018 | Air-condition bracket | 空调托架 |
| 4 | VG1500090026 | Bolt | 拉紧螺栓 |
| 5 | VG1500090027 | Distance piece | 拉紧块 |
| 6 | VG1500090018 | Bolt | 拉紧螺栓 |
| 7 | 90003800564 | Bolt | 六角头螺栓 |
| 8 | 90003932025 | Spring washer | 鞍形弹性垫圈 |
| 9 | 90003935125 | Washer | 平垫圈 |
| 10 | 90003871305 | Nut | 1型六角螺母 |
| 11 | 90003888452 | Nut | 2型全金属六角锁紧螺母 |
| 12 | VG1560090001 | Starter | 起动机 |
| VG1560090007 | |||
| 13 | VG1092090311 | Pressure sensor | 电子式机油压力传感器 |
| VG1500090060 | Pressure sensor | 机电式机油压力传感器 | |
| 14 | VG2600080275 | Washer | 复合密封垫圈 |
| 15 | 90003930261 | Washer | 平垫圈 |
| 16 | R61540090003 | Temperature sensor | 进气温度传感器 |
| 17 | Q72316T3M | Sealing washer | 密封垫圈 |
| 18 | R61540090004 | Coolant temp. sensor | 冷却水温传感器 |
| 19 | Q72316T3M | Washer | 密封垫圈 |
| 20 | R61540090005 | Fuel temp. sensor | 柴油温度传感器 |
| 21 | R61540090006 | Sealing washer | 传感器密封圈 |
| 22 | R61540090007 | Pressure sensor | 进气压力传感器 |
| 23 | R61540090008 | Crankshaft speed sensor | 曲轴转速传感器 |
| 24 | VG1099090033 | Clamp | 线束支架 |
| 25 | VG1099090034A | Bolt bush | 螺栓衬套 |
| 26 | 90003802307 | Bolt | 六角头螺栓 |
| 27 | Q150B0640 | Bolt | 六角头螺栓 |
| 28 | 90014350003 | Spring washer | 弹簧垫圈 |
| 29 | VG1099090004 | Wiring harness | 单耳喷油器线束 |
| 30 | R61540090002 | ECU assembly | ECU控制总成 |
| 31 | VG1095090009 | Wiring harness | 线束总成 |
| VG1096090009 | |||
| VG1093090009 | |||
| VG1034090100 | |||
| VG1093090901 | |||
| VG1093090902 | |||
| VG1093090904 | |||
| 32 | VG1540090091A | 支持 | 支承架 |
| 33 | 90003930271 | Washer | 平垫圈 |
| 34 | 90003802527 | Bolt | 六角头螺栓 |
| 35 | 90014040007 | Washer | 平垫圈 |
| 36 | 90003802424 | Bolt | 六角头螺栓 |
| 37 | 90003800568 | Bolt | 六角头螺栓 |
| 38 | 90014070002 | Washer | 小垫圈 |
| 39 | 90003800575 | Bolt | 六角头螺栓 |
| 40 | VG1500130019 | Bush | 衬套 |
| 41 | 90003932025 | Spring washer | 鞍型弹性垫圈 |
| 42 | 90003800568 | Bolt | 六角头螺栓 |
| 43 | 90012630006 | Nut | 1型六角螺母 |
| 44 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 45 | 90003935015 | Washer | 平垫圈 |
| 46 | VG1500130027 |
